Introduction to RTDs

Resistance Temperature Detectors (RTDs) rely on the predictable and repeatable phenomena of the electrical resistance of metals changing with temperature.

The temperature coefficient for all pure metals is of the same order - 0.003 to 0.007 ohms/ohm/°C. The most common metals used for temperature sensing are platinum, nickel, copper and molybdenum. While the resistance - temperature characteristics of certain semiconductor and ceramic materials are used for temperature sensing (see sections on Semiconductor and Thermistor ), such sensors are generally not classified as RTDs.

A precision RTD Temperature Calculator supporting four RTD types can provide a "hands-on" understanding of RTD characteristics.

How are RTDs constructed?

RTDs are manufactured in two ways: using wire or film. Wire RTDs are a stretched coil of fine wire placed in a ceramic tube that supports and protects the wire. The wire may be bonded to the ceramic using a glaze. The wire types are generally the more accurate, due to the tighter control over metal purity and less strain related errors. They are also more expensive.

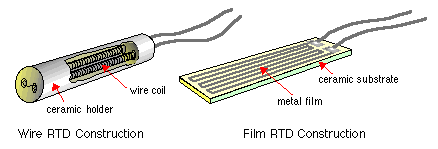

Wire and Film RTD Construction

Film RTDs consist of a thin metal film that is silk-screened or vacuum spluttered onto a ceramic or glassy substrate. A laser trimmer then trims the RTD to its correct resistance value.

Film sensors are less accurate than wire types, but they are relatively inexpensive, they are available in small sizes and they are more robust. Film RTDs can also function as a strain gauge - so don't strain them! The alumina element should be supported by grease or a light elastomer, but never embedded in epoxy or mechanically clamped between hard surfaces.

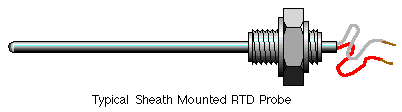

Sheath Mounted RTD Probe

RTDs cannot generally be used in their basic sensing element form, as they are too delicate. They are usually built into some type of assembly, which will enable them to withstand the various environmental conditions to which they will be exposed when used. Most commonly this is a stainless steel tube with a heat conducting grease (that also dampens vibration). Standard tube diameters include 3, 4.5, 6, 8, 10, 12 and 15 mm and standard tube lengths include 250, 300, 500, 750 and 1000 mm.

Characteristics of RTDs

Metal RTDs have a response defined by a polynomial:

R(t) = R0 ( 1 + a.t + b.t2 + c.t3 )

Where R0 is the resistance at 0°C, "t" in the temperature in Celsius, and "a", "b" and "c" are constants dependent on the characteristics of the metal. In practice this equation is a close but not perfect fit for most RTDs, so slight modifications are often be made.

Commonly, the temperature characteristics of an RTD are specified as a single number (the "alpha"), representing the average temperature coefficient over the 0 to 100°C temperature range as calculated by:

alpha = ( R100 - R0 ) / 100 . R0    in ohms/ohm/°C

Note: RTDs cover a sufficient temperature range that their response needs to be calibrated in terms of the latest temperature scale ITS90. For assistance with such calculations, see the RTD temperature calculator.

It is also of interest to note that the temperature coefficient of an alloy is frequently very different from that of the constituent metals. Small traces of impurities can greatly change the temperature coefficients. Sometimes trace "impurities" are deliberately added so as to swamp the effects of undesired impurities which are uneconomic to remove. Other alloys can be tailored for particular temperature characteristics. For example, an alloy of 84% copper, 12% Manganese and 4% Nickel has the property of having an almost zero response to temperature. The alloy is used for the manufacture of precision resistors.

Types of RTDs

While almost any metal may be used for RTD manufacture, in practice the number used is limited.

Metal


Temperature Range

Alpha

Comments

Copper

Pt

-200°C to 260°C

0.00427

Low cost

Molybdenum

Mo

-200°C to 200°C

0.00300
0.00385

Lower cost alternative to platinum in the lower temperature ranges

Nickel

Ni

-80°C to 260°C

0.00672

Low cost, limited temperature range

Nickel - Iron

Ni-Fe

-200°C to 200°C

0.00518

Low cost

Platinum

Pt

-240°C to 660°C

0.00385
0.00392
0.00377

Good precision. Extend temperature range to 1000°C available

Other materials are used for specialist applications. For example, cryogenic temperature sensors.

Platinum RTDs

Platinum is by far the most common RTD material, primarily because of its long-term stability in air. There are two standard Platinum sensor types, each with a different doping level of 'impurities'. To a large extent there has been a convergence in platinum RTD standards, with most national standards bodies adopting the international IEC751-1983, with amendment 1 in 1986 and amendment 2 in 1995. The USA continues to maintain its own standard.

All the platinum standards use a modified polynomial known as the Callendar - Van Dusen equation:

R(t) = R0 ( 1 + a.t + b.t2 + c.(t - 100).t3 )

Platinum RTDs are available with two temperature coefficients or alphas - the choice is largely based on the national preference in you country, as indicated in the following table:

Standard

Alpha
ohms/ohm/°C

R0
ohms

Polynomial Coefficients

Countries

IEC751

(Pt100)

0.00385055

100

200°C < t < 0°C
a = 3.90830x10-3
b = -5.77500x10-7
c = -4.18301x10-12

0°C < t < 850°C
a & b as above, but
c = 0.0

Australia, Austria, Belgium, Brazil, Bulgaria, Canada, Czech Rep, Denmark, Egypt, Finland, France, Germany, Israel, Italy, Japan, Poland, Rumania, Sth. Africa, Turkey, Russia, UK, USA

SAMA
RC-4

0.0039200

98.129

a = 3.97869x10-3
b = -5.86863x10-7
c = -4.16696x10-12

USA

The international IEC 751 standard specifies tolerance classes as indicated in the following table. While only Classes A and B are defined in IEC 751, it has become common practice to extended the Classes to C and D, which roughly double the previous error tolerance. The tolerance classes are often applied to other RTD types.

Tolerance Class

Tolerance Equation (°C)

Class A

± ( 0.15 + 0.002.| t | )

Class B

± ( 0.30 + 0.005. | t | )

Class C

± ( 0.40 + 0.009. | t | )

Class D

± ( 0.60 + 0.0018. | t | )

Where | t | indicated the magnitude of the temperature in Celsius (that is sign is dropped). Some manufacturers further subdivide their RTD Tolerance Classes into Tolerance Bands for greater choice in price performance ratios.

Characteristics of Platinum RTDs

The IEC751 specifies a number of other characteristics - insulation resistance, environmental protection, maximum thermoelectric effect, vibration tolerance, lead marking and sensor marking. Some of these are discussed below:

Thermoelectric Effect: A platinum RTD generally employs two metals - the platinum sensing element and copper lead wires, making it a good candidate for a thermocouple. If a temperature gradient is allows to develop along the sensing element, a thermoelectric voltage with a magnitude of about 7 µV /°C will be generated. This is only likely to be a problem with very high-precision measurements operating at low excitation currents.

Wiring Configurations and Lead Marking: There are three wiring configurations that can be used for measuring resistance - 2, 3 and 4 wire connections.

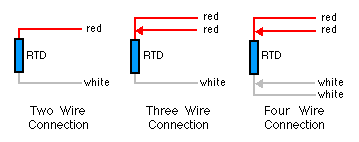

Two, Three, and Four Wire Construction

IEC751 requires that wires connected to the same end of the resistor be the same colour - either red or white, and that the wires at each end be different. See the measurement section for the merits of each of these wiring schemes.

Sensor Marking: IEC 751 stipulates that a sensor should be marked with its nominal R0 value, tolerance class, the wiring configuration and the allowable temperature range. An example marking is:

Pt100 / A / 3/ -100 / +200

corresponding to 100 Ohm platinum, class A, 3 wire configuration and with a temperature range from -100°C to +200°C.

Measurement Current: Preferred measurement currents are specified as 1, 2 and 5 mA, although 5 mA is not allowed with class A sensors due to potential self-heating errors.

Nickel RTDs

Nickel sensors are preferred in cost sensitive applications such as air conditioning and consumer goods. Because cost is an issue, they are generally manufactured in higher resistance values of 1k or 2k ohms so that a simple two-wire connection can be used (rather than the 3 or 4 wire connections common with platinum types).

There appears to be no international standard covering the nickel RTD, although most manufacturers appear to follow IEC751 (which only deals with platinum devices) where appropriate. A resulting problem is that there appears to be no widely-accepted calibration for the nickel RTD.

One manufacturer of nickel RTDs recommends the following polynomial:

R(t) = R0 (1 + a.t + b.t2 + d.t4 + f.t6 )

where  a = 5.485x10-3  b = 6.650x10-6  d = 2.805x10-11  and  f = -2.000x10-17. The alpha for this part is 0.00672 ohms / ohm / °C

More common for low to medium precision measurement the simplification of the equation is used with a = alpha:

R(t) = R0 (1 + a.t )

which is easily inverted for temperature:

t = (Rt / R0 - 1) / a = (Rt / R0 - 1) / 0.00672

where "a" is substituted for the alpha value.

Nickel is less chemically-inert that platinum and so is less stable at higher temperatures. Glass passivation can extend the useful temperature range to 200°C, but the nickel RTD is normally used for sensing in the environmental temperature range and in clear air.

Nickel - Iron RTDs

Lower in cost than the pure Nickel RTD, the Nickel-Iron RTD finds application in HVAC and other cost-sensitive applications. The alpha = 0.00518

Copper RTDs

Copper is rarely used specifically as a sensing element, but is often employed when a copper coil exists for other purposes. For example in a vibrating wire stain gauge a coil is required to "pluck" the wire and sense its vibration frequency. The same coil can be used to sense the temperature of the sensor so that its readings may be compensated for temperature induced drifts. Another application is in measuring the temperature of electric motor and transformer windings.

In these types of applications, where temperature sensing is a secondary function, care should be taken in winding the coil so that thermal expansion of the system does not induce significant strain gauge effects in the copper wire which may add to the uncertainty of the measurement.

There appears to be no international standard for copper RTDs, however an alpha = 0.00427 ohms / ohm / °C is commonly used. When the temperature range is small (say 0°C to 180°C) and the accuracy needs are not great, a simple linear function can be used:

t = (Rt / R0 - 1) / 0.00427

Molybdenum RTDs

Molybdenum has a temperature coefficient of expansion which almost perfectly matches that of alumina, making it an ideal material for film type of construction. The useful temperature range is typically -200°C to +200°C and the material's alpha = 0.00300 ohms / ohm / °C.

Molybdenum RTDs are also available with an alpha = 0.00385 ohms / ohm / °C (achieved by doping with other metals) which makes it compatible with the standard Pt100 devices over a reduced temperature range and at a reduced cost.

Proprietary types

A number of companies manufacture proprietary RTD sensor types and do not necessarily publish details about the sensing material used. One such device is the TD Series of temperature sensors from Honeywell. These appear to be constructed by depositing a thin metal film on a silicon substrate and trimming by laser. The benefits are a relatively low cost, simplicity and ±0.7°C interchangeability at 20°C. The response of the Honeywell parts is similar to a platinum RTD:

R(t) = R0(1 +3.84x10-3.t + 4.94x10-6.t2)

The following table represents some of the proprietary RTD sensor types manufactured by a variety of companies:

Sensor

Manuf.

Output

Tolerance
(range)

Package

Comments

TD4A
TD5A

Honeywell

8 ohms/°C
(1854 ohms at 0°C)

±2.5°C
(-40°C to 150°C)

TO-92 or threaded tube

Metal film on silicon substrate

KTY81
KTY82
KTY83
KTY84
KTY85

Philips

1K or 2K at 25°C, +0.8%/°C
See below

±6°C to ±12°C
(-55°C to +150°C
some to 300°C)

SOD-70,
SOT-23
SOD-68
SOD-80

Bulk resistance of silicon. Keep excitation current >0.1mA and < 1mA

KYY10
KTY11
KTY13

Siemens

1K or 2K at 25°C, +0.8%/°C
See below

±1°C & ±3.5°C
(-50°C to +150°C)

TO-92
modified

Bulk resistance of silicon.

32208243
32209115

Heraeus

as for Pt100 & Pt1000

±1°C
(-50°C to 130°C)

1206 SMD
SOT223

Surface mount RTDs

HA421
HA2421

Heraeus

Pt200 at 25°C

±4.5 to ±15°C
(-70 to 1000°C)

Leaded

Automotive applications

The Philips and Siemens parts are based on the bulk resistance characteristics of silicon. This also allows the use of standard silicon semiconductor fabrication equipment. This design can be more stable than other semiconductor sensor, due to the greater tolerance to ion migration. However, other characteristics (see below) require that care be taken in using these sensors.

The silicon temperature sensor's resistance is given by the equation:

R = Rr ( 1 + a.( T - Tr ) + b.( T - Tr )2- c.(T - Ti )d )

where Rr is the resistance at temperature Tr and a, b, c and d are constants. Ti is an inflection point temperature such that c = 0 for T <  Ti.

The resistance of some of bulk resistance sensors is dependent on the excitation current (due to current density effects in the semiconductor) and, to a lesser extent, on the polarity of the applied voltage. As with other non-passive temperature sensors, self-heating can induce errors.

These proprietary sensors are well suited to HVAC (heating, ventilation and air conditioning) and general use inside the allowable temperature range.
